A54SX72A-PQG208M

A54SX08A-2TQ144

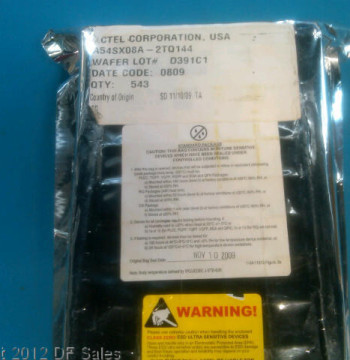

ACTELA54SX08A-2TQ144 A54SX08A-2TQ144 refers to a specific model of an integrated circuit (IC) or field-programmable gate array (FPGA). Here's some information about this model: Family: A54SX Logic Cells: 8,000 (8K) Speed Grade: A-2 Package: TQ144 The A54SX is a series of FPGAs manufactured by Microsemi Corporation (now a part of Microchip Technology Inc.). FPGAs are programmable logic devices that allow for the implementation of digital circuits and systems. They consist of an array of configurable logic blocks and programmable interconnects, providing flexibility in designing and implementing digital logic circuits. The specific model A54SX08A-2TQ144 has 8,000 logic cells, indicating the approximate number of basic building blocks available for creating digital logic functions within the FPGA. These logic cells can be used to implement various digital functions, including combinational logic, sequential logic, and complex control structures. The speed grade A-2 denotes the performance characteristics of the FPGA, including the maximum operating frequency. Different speed grades within a series offer varying levels of performance, with higher grades typically indicating higher operating frequencies. The package TQ144 refers to the physical package or form factor of the FPGA. TQ144 is a thin quad flat pack (TQFP) package with 144 pins. The pins are arranged in a square grid pattern around the perimeter of the device. TQFP packages are commonly used for integrated circuits and provide a convenient means of soldering the device to a printed circuit board. DOWNLOAD DATASHEET

A54SX32A-FTQG100

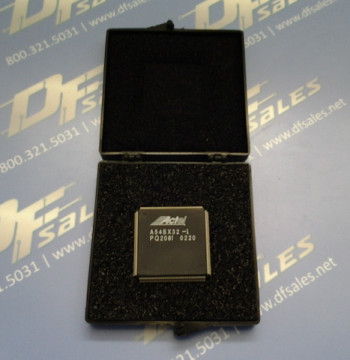

A54SX32-1PQ208I

A54SX08-3VQ100

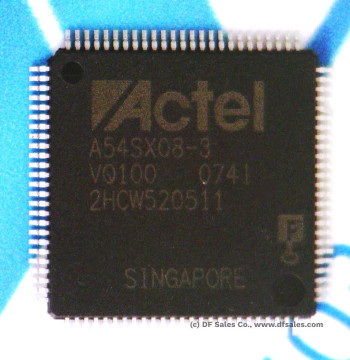

ACTELA54SX08-3VQ100 FPGA SX Family 8K Gates 512 Cells 350MHz 0.35um Technology 3.3V/5V 100-Pin VQFP 320 MHz Internal Performance 3.7 ns Clock-to-Out (Pin-to-Pin) 0.1 ns Input Setup 0.25 ns Clock Skew12,000 to 48,000 System Gates Up to 249 User-Programmable I/O Pins Up to 1,080 Flip-Flops0.35 u CMOS A54SX08-3VQ100 refers to a specific model of an integrated circuit (IC) or field-programmable gate array (FPGA). Here's some information about this model: Family: A54SX Logic Cells: 8,000 (8K) Speed Grade: -3 Package: VQ100 The A54SX is a series of FPGAs manufactured by Microsemi Corporation (now a part of Microchip Technology Inc.). FPGAs are programmable logic devices that allow for the implementation of digital circuits and systems. They consist of an array of configurable logic blocks and programmable interconnects, providing flexibility in designing and implementing digital logic circuits. The specific model A54SX08-3VQ100 has 8,000 logic cells, indicating the approximate number of basic building blocks available for creating digital logic functions within the FPGA. The logic cells can be used to implement a wide range of digital functions, including combinational logic, sequential logic, and complex control structures. The speed grade -3 denotes the performance characteristics of the FPGA, including the maximum operating frequency. Different speed grades within a series offer varying levels of performance, with lower numbers typically indicating higher operating frequencies. The package VQ100 refers to the physical package or form factor of the FPGA. VQ100 is a quad flat pack (QFP) package with 100 pins. The pins are arranged in a square grid pattern around the perimeter of the device. QFP packages are commonly used for integrated circuits and provide a relatively easy means of soldering the device to a printed circuit board. DOWNLOAD DATASHEET
