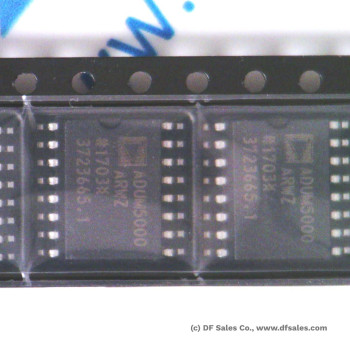

ADUM5000ARWZ-RL
ADUM5000ARWZ-RL (ADUM5000ARWZ) TES1004771-00-A-R Module DC-DC 1-OUT 3.3V/5V 0.1A 0.5W 16-Pin SOIC W 1000 X REEL ROHS, LABEL, MY
In stock: 624
$4.2500
/ ea
Analog Devices Inc.
ADUM5404ARWZ-RL
General Purpose Digital Isolator
In stock: 1,000
On our shelves in San Jose. We do not dropship.
Stock on our shelves
Date code and country of origin on every lot.
| Quantity | Date code | Country of origin |
|---|---|---|
| 1,000 | 1820 | Malaysia |
| 1,000 | 1 lot on the shelf | |
Need a specific date code, or all of it from a single lot? Tell us on the quote and we will confirm before shipping.
Specifications
| Manufacturer | Analog Devices Inc. |
|---|---|
| Manufacturer part number | ADUM5404ARWZ-RL |
| Our part number | 52322245 |
| Category | IC |
| Description | General Purpose Digital Isolator |
| Date codes in stock | 1820 |
Compliance & export
| ECCN | EAR99 |
|---|---|
| HTS (US) | 8542.39.0001 |
| Country of origin | Malaysia |
Classification is provided for reference and confirmed on the invoice. Certificate of conformance and date-code guarantee on request — ask with your order.
Description
ADUM5404ARWZ-RL General Purpose Digital Isolator 2500Vrms 4 Channel 1Mbps 25kV/us CMTI 16-SOIC 8542.39.0001
Similar parts on our shelves
Same part number family — confirm the specs before you swap.
ADUM5000ARWZ
ADUM5000ARWZ (ADUM5000ARWZ-RL REEL)Module DC-DC 1-OUT 3.3V/5V 0.5W 16-Pin SOIC WTUBE ROHS
Only 5 left
$4.6200
/ ea
.jpg)

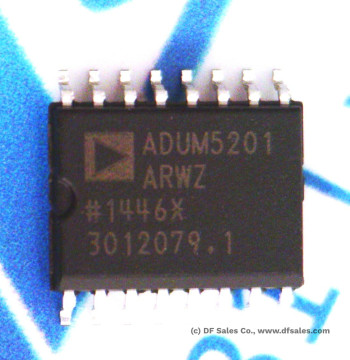

ADUM5201ARWZ
