Parts from APPLETON

CG-50100

CG5050

50-1049-8526

ST-125

ACP1034CD

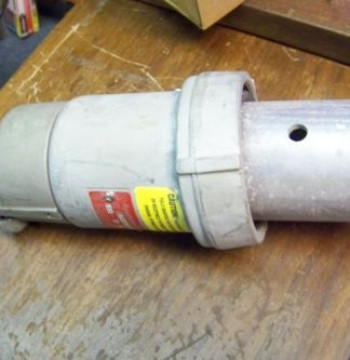

ACP1034CD APPLETON APPLETON PLUG (MALE) 100 AMP, 600VAC, 250VDC, 50 - 400HZ, 3-WIRE, 4-POLE POWERTITE SERIES PIN AND SLEEVE EPOXY POWDER COATED COPPER FREE ALUMINUM HOUSING CLAMPING RING WITH NEOPRENE GASKET CABLE DIAMETER RANGE .875 - 1.906 INCHES RATED NEMA 4X WHEN MATED TO CONNECTOR WITH FULLY TIGHTENED CLAMPING RING FEATURES: CIRCUIT BREAKING ARCING CONFINED DEEP WITHIN TERMINAL CAVITY COPPER FREE ALUMINUM HOUSING GROUND STRAP (USED IN STYLE 2) STYLE 2 (SHELL AND EXTRA POLE GROUNDING) WIDELY SPACED AND DEEPLY RECESSED CONTACTS FOR EXTRA SAFETY NEOPRENE BUSHING (4 SIZES PROVIDED) SEALS OUT WATER AND DUST SOLID BRASS CONTACTS WITH BERYLLIUM COPPER SPRINGS PRESSURE WIRE TERMINALS TERMINAL SCREW GRIPS CONDUCTORS FIRMLY MECHANICAL REVERSIBLE CABLE CLAMP ALLOWS WIDE CABLE RANGE AND STRAIN RELIEF APPLICATIONS: DESIGNED TO SUPPLY POWER TO PORTABLE OR FIXED ELECTRICAL EQUIPMENT SUCH AS MOTOR GENERATOR UNITS, WELDERS, PUMPS, COMPRESSORS, CELLULAR RELAY STATIONS AND SIMILAR APPARATUS. IDEAL FOR USE ON SHIPPING DOCKS, PORTS, AND OTHER SHIP TO SHORE AND SHORE POWER APPLICATIONS. SUITABLE FOR USE IN LOCATIONS WHERE A WEATHERPROOF ENCLOSURE IS REQUIRED CERTIFICATIONS: UL LISTED CSA LISTED NEMA 4X WEIGHT: 4.765 LBS
