Parts from INTERSIL

JANTX2N4856

JANTX2N4858/INTERSIL

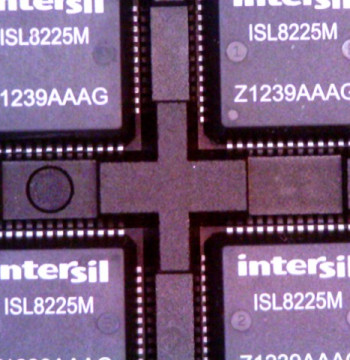

ISL8225M

ISL8225M65 X TRAY

ISL54101CQZ

ISL54101CQZ TMDS Regenerator 128-Pin MQFP ROHS 66 X TRAY

HI3-0507A-5

HI5731BIB

CA3338AM

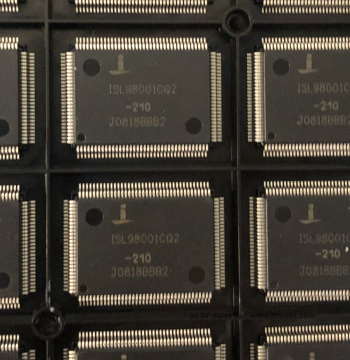

ISL98001CQZ-210

DG121AP/HR

IC DG121APHR 14 PIN DIP

SB21150AC

SB21150ACTRAY

ICM7211AMIPL

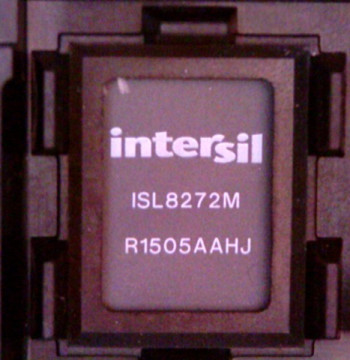

ISL8272MAIRZ

ISL8272MAIRZ 50A Digital DC/DC PMBus Power Module 45 X TRAY OBSOLETE DATE 9/30/2021 , NO REPLACEMENTSKU 51240877 DescriptionThe ISL8272M is a 50A step-down PMBus compliant digital power module. Integrated in the module is a high performance digital PWM controller, dual-phase power MOSFETs, inductors, and the passives. This high efficiency power module is capable of delivering 50A without the need for airflow and heatsinks. The ISL8272M can be placed in a current sharing configuration with up to four modules in parallel to deliver 200A continuous current. The ISL8272M operates with the ChargeMode control architecture, which responds to a transient load within a single switching cycle. The ISL8272M comes with operating in a pin strap mode; output voltage, switching frequency device, SMBus address, input UVLO, soft-start/stop, and current sharing can be programmed through external resistors. More configuration such as fault limits, fault response, margining, and sequencing can be easily programmed using the PMBus interface. PMBus can be used to monitor voltages, currents, temperatures, and fault status. The ISL8272M is supported by the PowerNavigator software, a graphical user interface (GUI) that can be used to configure modules to a desired solution. The ISL8272M is built in a compact (18mmx23mmx7.5mm) and low profile overmolded HDA package, suitable for automated assembly by standard surface mount equipment.Features Complete digital switch mode power supply Wide input voltage range: 4.5V to 14V Programmable output voltage range: 0.6V to 5V PMBus compliant communication interface Programmable VOUT, margining, UV/OV, UC/OC, UT/OT, soft-start/stop, sequencing and external synchronization Monitor of VIN, VOUT, IOUT, temperature, duty cycle, switching frequency, power-good, and faults Fast response ChargeMode control architecture Multiphase current sharing with up to four modules±1.0% VOUT accuracy over line, load, and temperature Internal nonvolatile memory and fault logging Thermally enhanced HDA packageApplicatons Server, telecom, storage, and datacom Industrial/ATE and networking equipment General purpose power for ASIC, FPGA, DSP, and memoryRelated Literature For a full list of related documents, visit our manufacture website - ISL8272M product page

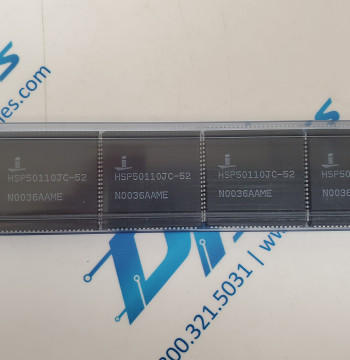

HSP50110JC-52

HSP50110JC-52 DIGITAL QUAD TUNER 84-PLCC15 X TUBE LEADEDSKU 00172838

ISL98001CQZ-275

ISL98001CQZ-275 ISL98001CQZ275 AFE Video 3ADC 8-Bit 3.3V 128-Pin MQFP TRAY ROHS SINGAPORE

5962F9670301VXC

5962F0151001VXC

5962F0151001VXCQUAD COMPARATOR, 5000UV OFFSET-MAX, CDFP20

ISL70003ASEHVFE

ISL70003ASEHVFE(5962R1420302VYC)Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 9A DieHTSUS:8542.39.0001
