Parts from SIGNETICS

2N1193

LM108A

N8X60N

N8X60N SIGNETICS 28P DIP 13 X TUBE MEMORY CONTROLLER

JM38510/07401SCA

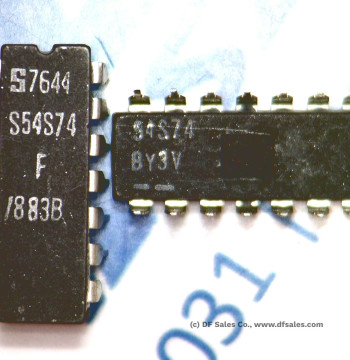

S54S74F/883B

SN54F161A/BEA

S54F161A/BEA

JAN2N3441

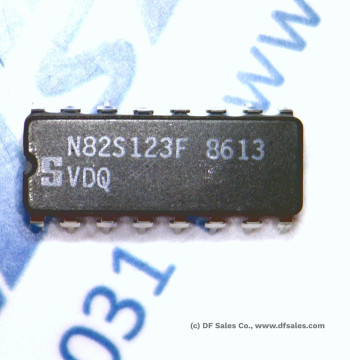

N82S123FVDQ

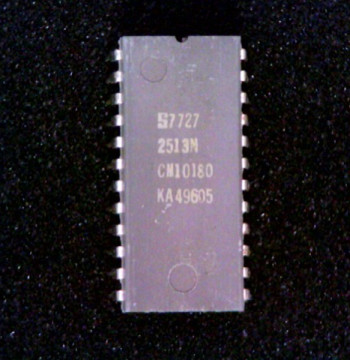

2513N

SIGNETICS2513NMASK ROM, 512X5, 600ns, MOS, PDIP24TUBE-15APPLE/NTI MIMEO Signetics 2513 is a high-speed 2560-bit Static ROM, which is organized as 64x8x5. This means it has a total storage capacity of 2560 bits, arranged in 64 words of 8 bits each, and a depth of 5 address lines. The 2513 ROM is designed to accommodate a standard 7x5 dot matrix, which suggests that it is specifically tailored for applications involving character or symbol generation. In terms of electrical specifications, the product requires +5V, -5V, and -12V power supplies. It also utilizes TTL-level interface signals and Tri-State Outputs, which allow for direct and low-cost interfacing with various logic families such as TTL, DTL, CMOS, and the 2500 Series MOS. DOWNLOAD DATASHEET

SDF511
