Parts from ACTEL

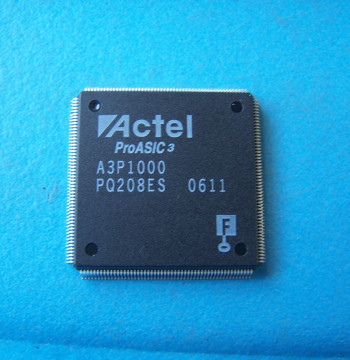

a3p1000-pq208es

A1425A-1PQ160C

A54SX08-3VQ100

ACTELA54SX08-3VQ100 FPGA SX Family 8K Gates 512 Cells 350MHz 0.35um Technology 3.3V/5V 100-Pin VQFP 320 MHz Internal Performance 3.7 ns Clock-to-Out (Pin-to-Pin) 0.1 ns Input Setup 0.25 ns Clock Skew12,000 to 48,000 System Gates Up to 249 User-Programmable I/O Pins Up to 1,080 Flip-Flops0.35 u CMOS A54SX08-3VQ100 refers to a specific model of an integrated circuit (IC) or field-programmable gate array (FPGA). Here's some information about this model: Family: A54SX Logic Cells: 8,000 (8K) Speed Grade: -3 Package: VQ100 The A54SX is a series of FPGAs manufactured by Microsemi Corporation (now a part of Microchip Technology Inc.). FPGAs are programmable logic devices that allow for the implementation of digital circuits and systems. They consist of an array of configurable logic blocks and programmable interconnects, providing flexibility in designing and implementing digital logic circuits. The specific model A54SX08-3VQ100 has 8,000 logic cells, indicating the approximate number of basic building blocks available for creating digital logic functions within the FPGA. The logic cells can be used to implement a wide range of digital functions, including combinational logic, sequential logic, and complex control structures. The speed grade -3 denotes the performance characteristics of the FPGA, including the maximum operating frequency. Different speed grades within a series offer varying levels of performance, with lower numbers typically indicating higher operating frequencies. The package VQ100 refers to the physical package or form factor of the FPGA. VQ100 is a quad flat pack (QFP) package with 100 pins. The pins are arranged in a square grid pattern around the perimeter of the device. QFP packages are commonly used for integrated circuits and provide a relatively easy means of soldering the device to a printed circuit board. DOWNLOAD DATASHEET

A54SX32-1PQ208I

A1460A-1TQ176C

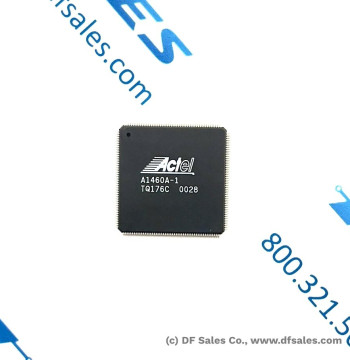

ActelA1460A-1TQ176CField Programmable Gate Array (FPGA) IC 151 176-LQFIC FPGA 151 I/O 176TQFPRoHS non-compliant3A991D40 X TRAY In November 2010, Actel was acquired by Microsemi OBSOLETE A1460A-1TQ176C is a part number for a specific member of the Actel ProASIC3 family of field-programmable gate arrays (FPGAs). Actel (now Microsemi) is a semiconductor company that produces a range of programmable logic devices and other integrated circuits. The ProASIC3 family is designed for use in a variety of applications, including telecommunications, industrial automation, and military/aerospace systems. The A1460A variant is a mid-range device with 1,460 logic cells and 48 user I/O pins. The "1TQ176C" portion of the part number indicates that this particular device is packaged in a 176-pin TQFP package. As an FPGA, the ProASIC3 allows for flexible design and reconfiguration of digital circuits, making it a popular choice for applications where custom logic functionality is required. The specific features and capabilities of this device will depend on the particular configuration and design of the circuit implemented within the FPGA.DOWNLOAD DATASHEET

A54SX32-2TQG144

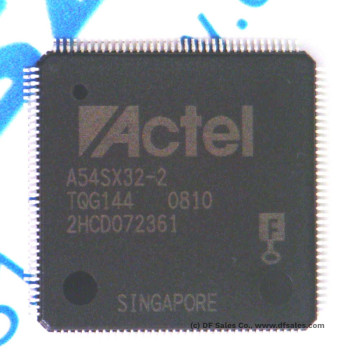

A54SX32-2TQG144 IC 113 144-LQFPSX Field Programmable Gate Array (FPGA)

APA600-FGG256

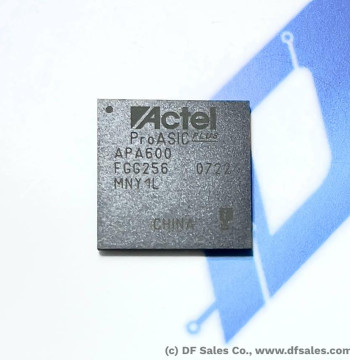

APA600-FGG256The ProASIC PLUS family achieves its nonvolatility and reprogrammability through an advanced Flash-based 0.22μm LVCMOS process with four layers of metal. Standard CMOS design techniques are used to implement logic and control functions, including the PLLs and LVPECL inputs. This results in predictable performance compatible with gate arrays.

APA750-FFG676

APA750-FGG676

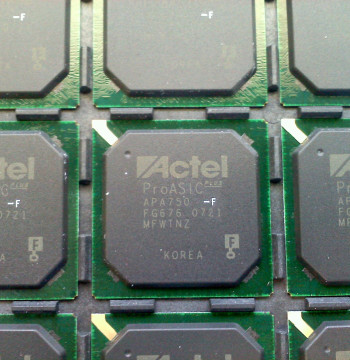

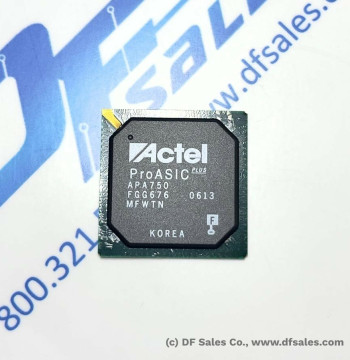

APA750-FGG676 ACTEL 676 FBGA 2.5V FPGA ProASICPLUS½ Family 750K Gates 180MHz 0.22um (CMOS)Features and Benefits High Capacity Commercial and Industrial - 75,000 to 1 Million System Gates - 27 K to 198 Kbits of Two-Port SRAM - 66 to 712 User I/OsMilitary - 300, 000 to 1 Million System Gates - 72 K to 198 Kbits of Two Port SRAM - 158 to 712 User I/Os Reprogrammable Flash Technology - 0.22 um 4 LM Flash-Based CMOS Process - Live At Power-Up (LAPU) Level 0 Support - Single-Chip Solution - No Configuration Device Required - Retains Programmed Design during Power-Down/Up Cycles - Mil/Aero Devices Operate over Full Military Temperature Range Performance - 3.3 V, 32-Bit PCI, up to 50 MHz (33 MHz over military temperature) - Two Integrated PLLs - External System Performance up to 150 MHz Secure Programming - The Industry's Most Effective Security Key (FlashLock®) Low Power - Low Impedance Flash Switches - Segmented Hierarchical Routing Structure - Small, Efficient, Configurable (Combinatorial or Sequential) Logic Cells

A54SX72A-PQG208M

A54SX72A-PQG208M ACTEL ECCN #3A001.A.2.CActel Corporation was an American manufacturer of nonvolatile, low-power field-programmable gate arrays. It was headquartered in Mountain View, California, with offices worldwide. In November 2010, Actel was acquired by Microsemi The HiRel versions of Actel SX-A family FPGAs offer advantages for commercial applications and all types of military and high reliability equipment. The HiRel versions are fully pin compatible, allowing designs to migrate across different applications that do not have radiation requirements. Additionally, the HiRel devices can be used as a lower cost prototyping tool for RadTolerant (RT) designs. This datasheet discusses HiRel SX-A products. Refer to the Actel website for more information concerning RadTolerant products. The programmable architecture of these devices offers high performance, design flexibility, and fast and inexpensive prototyping, all without the expense of test vectors, NRE charges, long lead times, and schedule and cost penalties for design modifications that are often required by ASIC devices. Actel Corporation was an American manufacturer of nonvolatile, low-power field-programmable gate arrays, mixed-signal FPGAs, and programmable logic solutions. It was headquartered in Mountain View, California, with offices worldwide. Actel Corporation has been acquired by MicrosemiQML CertificationActel has achieved full QML certification, demonstrating that quality management, procedures, processes, and controls are in place and comply with MIL-PRF-38535, the performance specification used by the Department of Defense for monolithic integrated circuits. QML certification is an example of the Actel commitment to supplying the highest quality products for all types of high reliability, military, and space applications.Many suppliers of microelectronics components have implemented QML as their primary worldwide business system. Appropriate use of this system not only helps in the implementation of advanced technologies, but also allows for quality, reliable, and cost-effective logistics support throughout the life cycles of QML products. HiRel SX-A Family Architecture The HiRel SX-A family architecture was designed to satisfy next-generation performance and integration requirements for production volume designs in a broad range of applications. Programmable Interconnect Element The HiRel SX-A family incorporates either three (in HiRel A54SX32A) or four (in HiRel A54SX72A) layers of metal interconnect and provides efficient use of silicon by locating the routing interconnect resources between the top two metal layers (Figure 1-1). This completely eliminates the channels of routing and interconnect resources between logic modules (as implemented on SRAM FPGAs and previous generations of antifuse FPGAs) and enables the entire floor of the device to be spanned with an uninterrupted grid of logic modules.DOWNLOAD DATASHEET

A1280A-1PQ160I

A1460A-PQ208C

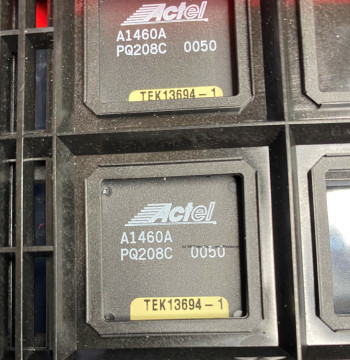

A1460A-PQ208C(TEK13694-1)Field Programmable Gate Array (FPGA) IC 167 208-BFQFPTRAY OBSOLETE

A54SX16P-TQ144M

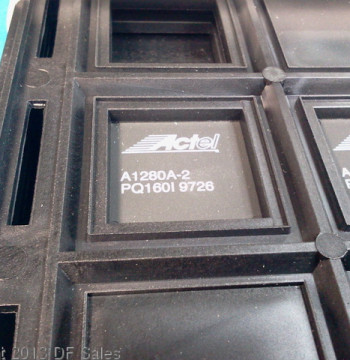

A1280A-2PQ160I

APA750-BGG456I

A54SX16-CQ208
